**Raspberry Pi**
The Raspberry Pi is a compact, credit card-sized computer that can be connected to a TV, monitor, keyboard, and mouse. It's capable of performing many tasks typically handled by a regular desktop computer, such as word processing, spreadsheet creation, media playback, and even gaming. Additionally, it supports HD video playback up to 1080p resolution.
It's important to note that the Raspberry Pi Model A (which is no longer available) features 256MB of RAM with a single USB port and no Ethernet connection. The earlier Model B, released before October 15, 2012, also had 256MB of memory.
Developed by the Raspberry Pi Foundation, a UK-based charity, the project was led by Eben Upton. In March 2012, he officially launched the world’s smallest desktop computer — a credit card-sized device that includes all the essential functions of a standard PC. The foundation aims to make computing more accessible and engaging for students, especially in schools, and to promote its use in both developed and developing countries.
The Raspberry Pi is an ARM-based microcomputer motherboard that uses an SD or MicroSD card as its storage medium. It comes with one, two, or four USB ports, and a 10/100 Ethernet port (Model A lacks this). It also has an analog video output and an HDMI port for high-definition video. All these components are integrated into a small board, making it easy to set up with just a power supply, a keyboard, and a monitor.
The Raspberry Pi B model is sold as a bare board, without memory, power supply, keyboard, case, or cables. It is produced under license by three companies: Element 14/Premier Farnell, RS Components, and Egoman. You can now purchase Raspberry Pi boards from online retailers like JD.com and Taobao in China.
The Raspberry Pi Foundation provides downloadable Linux distributions, such as Debian and Arch Linux, and plans to support programming languages like Python, Java, BBC BASIC, C, and Perl. Python is particularly emphasized as the primary language for development.
**Raspberry Pi System Installation Tutorial**
1. Start by visiting the official Raspberry Pi website to download the official operating system. Alternatively, you can choose other images like Volumio for audio applications. Once downloaded, save the image file on your computer and insert an SD card into a card reader.

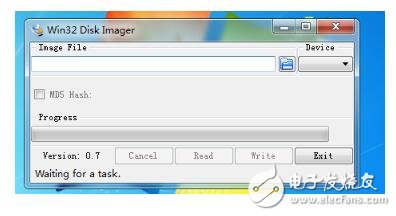

2. Run Win32DiskImager, click the folder icon to locate the system image file, select the SD card drive, and then click "Write." Wait until the process is complete.
3. If the installation fails or you need to re-image the card, connect the SD card to your computer and run SD Formatter. In the settings, make sure to select "Adjust Partition Size" as "ON."

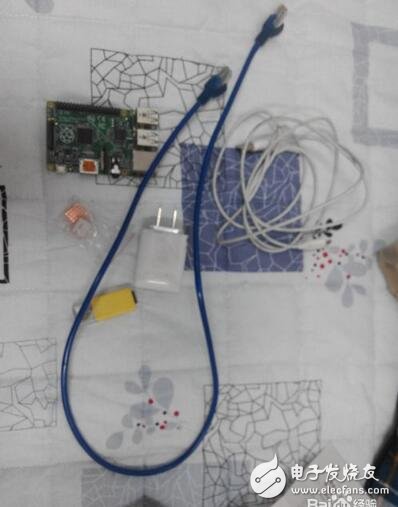

4. Insert the SD card into the Raspberry Pi, connect it to a power source, and plug the Ethernet cable into your router. This completes the setup.

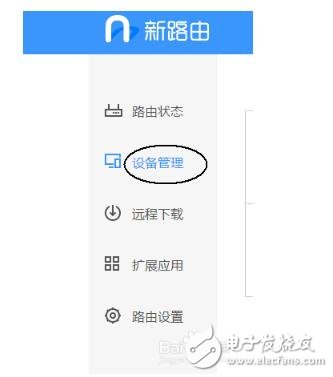

5. To access the Raspberry Pi remotely, you’ll need its IP address. You can find it by checking your router’s management page or using a LAN scanner tool.

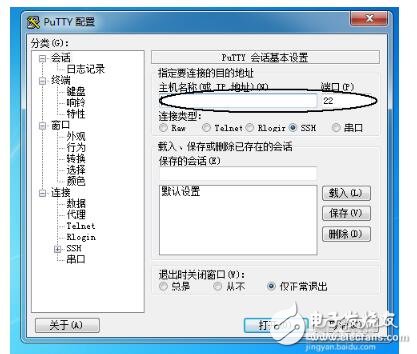

6. Once you have the IP address, open PuTTY, enter the IP address, and log in via port 22. The default username is "pi" and the password is "raspberry."
**Starting the Raspberry Pi**
1. After powering on, the screen should display text. If there’s no display, check the HDMI cable or adapter.
2. If the login interface appears, enter "pi" as the username and "raspberry" as the password. If the keyboard isn’t responding, try a different one.
3. If the system doesn’t recognize your keyboard or mouse, it may be due to insufficient power. Use a powered USB hub or a separate keyboard.
4. Once logged in successfully, you’ll see the command line interface, indicating the Raspberry Pi is working properly.
5. Type "startx" to launch the graphical user interface. Your Raspberry Pi is now fully operational!
