Model NO.: Fiber Optic Patch cord
Core: Single Core
Certification: RoHS, UL, CE, ISO9001, VDE, CCC
Brand: OEM
Sheath Material: PVC
Model No: LC-FC Fiber Optic Patchcord
Fiber Type: G652D, G655, G657
Core Number: Simplex, Duplex, Qurd
Cable Length: 1m.3m.5m or Customized
Cable Diameter: 0.9mm, 2.0mm, 3.0mm
Trademark: Takfly
Transport Package: PP Bag+Carton
Specification: ISO, ROHS, CE
Origin: Shenzhen, China
HS Code: 8544700000
Model NO.: Fiber Optic Patch cord
Core: Single Core
Certification: RoHS, UL, CE, ISO9001, VDE, CCC
Brand: OEM
Sheath Material: PVC
Model No: LC-FC Fiber Optic Patchcord
Fiber Type: G652D, G655, G657
Core Number: Simplex, Duplex, Qurd
Cable Length: 1m.3m.5m or Customized
Cable Diameter: 0.9mm, 2.0mm, 3.0mm
Trademark: Takfly
Transport Package: PP Bag+Carton
Specification: ISO, ROHS, CE
Origin: Shenzhen, China
HS Code: 8544700000
SM Simplex LSZH LC-FC Fiber Optic Patch cord
Â
Â
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC,MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
Â
All connectors have precision pre-radiused zirconia ferrules
ST and FC connectors have metal bodies
Corning, YOFC, OFS fiber is standard
Standard and custom configurations available
Duplex clips included with duplex configurations
Â
Features
1. Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2.Connector type standard: IEC61574 series
3.Low Insertion Loss : IEC 61300-3-4, IL≤0.20dB
4.High Return Loss :IEC61300-3-6; RL≥60dBÂ
5.Flammability:IEC60332-1
6.Repeat Plug feature is good, good interchangeabilityÂ
7. Ceramic Ferrule, high-density docking, concentricity ≤0.5
8. Can provide general PVC or LSZH cable cable
Application
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Specifications
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
|     MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB | ||||
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB | ||||
| Operating Temperature | -40ºC~+75ºC | ||||
| Storage   Temperature | -40ºC~+75ºC | ||||
Â
Order Information
| CODE | CONNECTOR | CABLEÂ SIZE | FIBERÂ TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex |
1. 0.9 2. 2.0 3. 3.0  |
1.9/125 2.OM3 3.50/125 4.62.5/125 |
1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH |
1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black  |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Â
Quality Control
All products must go through five checks before manufacturing process
Â
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Â
Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Â
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Â
Payment:Â
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Â
ShippingÂ
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Â
Â
Contact
1.Our working time:8:30am~5:30pmÂ
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you  need, our model number, and your E-mail address, we will reply to you within 24 hours too.
Have a happy shopping time *^-^*
Â
SM Simplex LSZH LC-FC Fiber Optic Patch cord
Â
Â
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC,MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
Â
All connectors have precision pre-radiused zirconia ferrules
ST and FC connectors have metal bodies
Corning, YOFC, OFS fiber is standard
Standard and custom configurations available
Duplex clips included with duplex configurations
Â
Features
1. Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2.Connector type standard: IEC61574 series
3.Low Insertion Loss : IEC 61300-3-4, IL≤0.20dB
4.High Return Loss :IEC61300-3-6; RL≥60dBÂ
5.Flammability:IEC60332-1
6.Repeat Plug feature is good, good interchangeabilityÂ
7. Ceramic Ferrule, high-density docking, concentricity ≤0.5
8. Can provide general PVC or LSZH cable cable
Application
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Specifications
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
|     MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB | ||||
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB | ||||
| Operating Temperature | -40ºC~+75ºC | ||||
| Storage   Temperature | -40ºC~+75ºC | ||||
Â
Order Information
| CODE | CONNECTOR | CABLEÂ SIZE | FIBERÂ TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex |
1. 0.9 2. 2.0 3. 3.0  |
1.9/125 2.OM3 3.50/125 4.62.5/125 |
1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH |
1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black  |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Â
Quality Control
All products must go through five checks before manufacturing process
Â
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Â
Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Â
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Â
Payment:Â
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Â
ShippingÂ
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Â
Â
Contact
1.Our working time:8:30am~5:30pmÂ
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you  need, our model number, and your E-mail address, we will reply to you within 24 hours too.
Have a happy shopping time *^-^*
Â

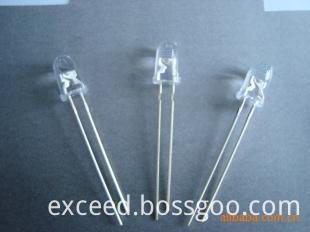

5Mm LED Lamp is widely used in many areas of production lighting, LED large screen display, traffic lights, decorative, computer, electronic toys, gifts, switches, telephones, advertising, city engineering brilliance,etc.
Exceed business range mainly covers LED Light, LED Lamp , High Power LED Light, High Power Big LED Bulb Light, Led Panel Light , LED Ceiling Light, Led Tube Light , Eye Protecting LED Table Lamp ,Body Sensor Led Bed Light ,LED Digit Display, LED Dot Matrix,etc.
5Mm Led Lamp Features:
Available on tape and reel.
Reliable and robust.
The product itself will remain within RoHS compliant Version.
Descriptions:
The series is specially designed for applications requiring higher brightness.
The LED lamps are available with different colors, intensities.
5mm LED Lamp
5Mm Led Lamp,5Mm Led Lights ,5Mm Round Led ,5Mm Round Water Clear Lamp
